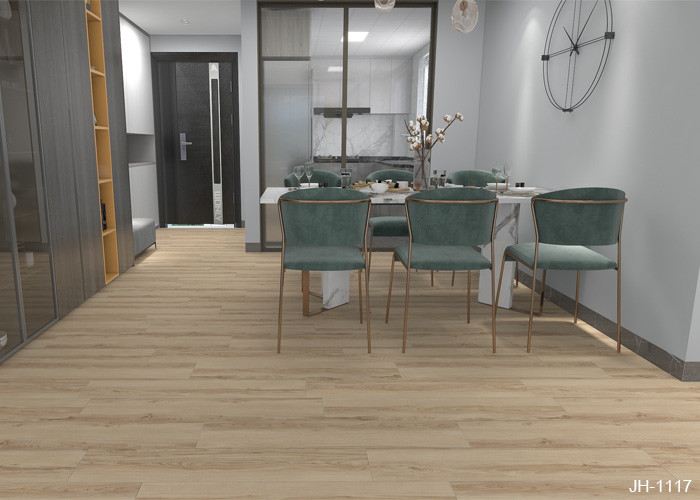

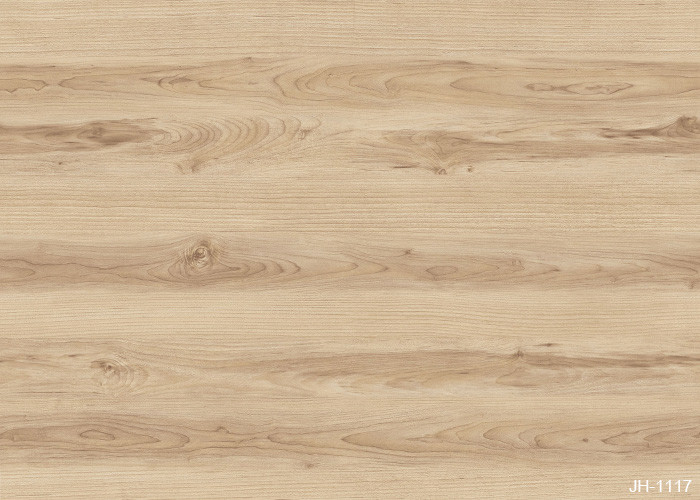

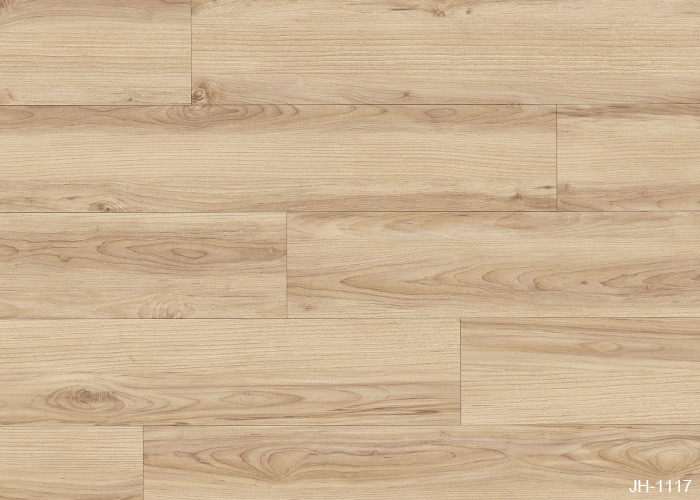

3.5-8mm Luxury SPC Flooring
| Place of Origin | Anhui |
|---|---|
| Brand Name | JH |
| Certification | SGS;Floor socre |
| Model Number | JH-1117 BP texture SPC flooring |
| Minimum Order Quantity | 1* 20GP container |
| Packaging Details | cartons, pallets |
| Delivery Time | 20-30 working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 containers/month |
Product Details
| Size | 1220 * 183mm; 1220 * 230mm; 1500 * 230mm; | Thickness | 3.5-8mm (excluding Mute Pad) |
|---|---|---|---|
| Underlayment | IXPE / EVA / Cork | Thickness Of Mute Pad | 1mm / 1.5mm / 2mm |
| Wear Resistant Layer | 0.15 - 0.5mm | Brightness | Matte 5 - 7 Degrees |
| Texture | Wood Grain;stone Grain;carpet Pattern | Substrate Color | Yellow / Black / White |
| Certificate | SGS / Floorscore | Advantages | Super Stable / Waterproof / Antiskid / Sound Insulation / Formaldehyde Free, Etc |
| Application | Apartment / Hotel / Office / Residential / Commercial Projects, Etc | ||
| High Light | 8mm Luxury SPC Flooring,3.5mm Luxury SPC Flooring,IXPE spc click vinyl flooring |
||
Product Description
Stone Plastic Composite floor Waterproof Luxury Vinyl Tiles Plastic PVC Plank SPC Flooring
How Is SPC Flooring Made?
To go the extra mile in understanding SPC flooring, let’s take a look at how it’s made. SPC is manufactured through the following six primary processes.
Mixing
To begin, a combination of raw materials is placed into a mixing machine. Once inside, the raw materials are heated up to 125 – 130 degrees Celsius in order to remove any water vapor inside the material. Once complete, the material is then cooled inside the mixing machine to prevent the occurrence of early plasticization or processing auxiliary decomposition.
Extrusion
Moving from the mixing machine, the raw material then goes through an extrusion process. Here, temperature control is crucial in order for the material to plasticize correctly. The material is ran through five zones, with the first two being the hottest (around 200 degrees Celsius) and slowly declining throughout the remaining three zones.
Calendaring
Once the material is fully plasticized into a mold, it is then time for the material to begin a process known as calendering. Here, a series of heated rollers are used to compound the mold into a continuous sheet. By manipulating the rolls, the width and thickness of the sheet can be controlled with precise accuracy and consistency. Once the desired thickness is reached, it is then embossed under heat and pressure. Engraved rollers apply the textured design onto the face of the product which can be a light “tick” or a “deep” emboss. Once the texture is applied, the scratch and scuff Top Coat will be applied and sent to the drawer.
Drawer
The drawing machine, used with frequency control, is connected with a motor directly, which is a perfect match to the production line speed and is used to deliver the material to the cutter.
Cutter
Here, the material is crosscut to meet the correct guideline standard. The cutter is signaled by a sensitive and accurate photoelectric switch to ensure clean and equal cuts.
Automatic Plate-Lifting Machine
Once the material has been cut, the automatic plate-lifting machine will lift and stack the final product into the packing area for pick-up.
SPC flooring structure:
1.The UV coating protects against excessive wear, provides superior cleanability, and provides superior stain resistance.
2.The wear layer is the top coating on the floor that is transparent. This adds scratch and stain resistance to the vinyl plank.
3.Each floor will have a thin layer of vinyl attached to it. This layer is waterproof and will contain the pattern, texture and look of the floor.
4.The core is made by combining limestone powder and stabilizers to create a dimensionally stable and waterproof core.
5.Floors may or may not come with attached underlayment. These are usually included to help with sound reduction and add softness to the floor.
5.Floors may or may not come with attached underlayment. These are usually included to help with sound reduction and add softness to the floor.
SPC flooring technical data:
| Size | 1220 * 183mm; 1220 * 230mm; 1500 * 230mm; |
| Thickness | 3.5 - 8mm (excluding mute pad) |
| Underlayment | IXPE / EVA / cork |
| Wear resistant layer | 0.15 - 0.5mm |
| Brightness | Matte 5 - 7 degrees |
| Texture | wood grain;stone grain;carpet pattern |
| Color | thunsands of colors available |
FAQ
Q: Are you a manufacturer or a trading company?
A: We are the manufacturer, providing OEM & ODM service.
Q: How many years since your company start this business?
A: We began manufacturing flooring since 1998 and SPC flooring since the year 2014
Q: Did your factory Register for export and import?
A: Yes. We applied full range of documents for exportation and importation.
Q: Did your factory and products approved by any testing or certification?
A: yes. We applied ISO 9001 and ISO 14001 quality certification,and Ameican indoor air emission standard certification and so on
Q: May I apply to be one distributor or sole agent in our country to sell your products?
A: yes. This issue can be have a discussion.
Q: May I apply some free samples for testing before purchasing the full range of production?
A: Yes. Provide free sanmple,but the postage needs to be paid at your own expense.
Q: How to deal for sample order and regular order?
A:Regaring the sample order only can be arranged by fast express, such as DHL UPS TNT and so on, the charges we can check for u! For the regular order, normally we choose BY AIR or BY SEA, EXW, FOB all are acceptable.
Q: How faster u can ship out the order?
A: For sample order normally within 3 days, regular order need to negotiate before every delivery issue settle down.
Q: Can you provide us the best price?
A: Yes, each Item have differential pricing according to quantity.
Q: Can we visit your factory?
A: Yes, You are welcome to have a visit, u need to make an appointment with us before your coming.
